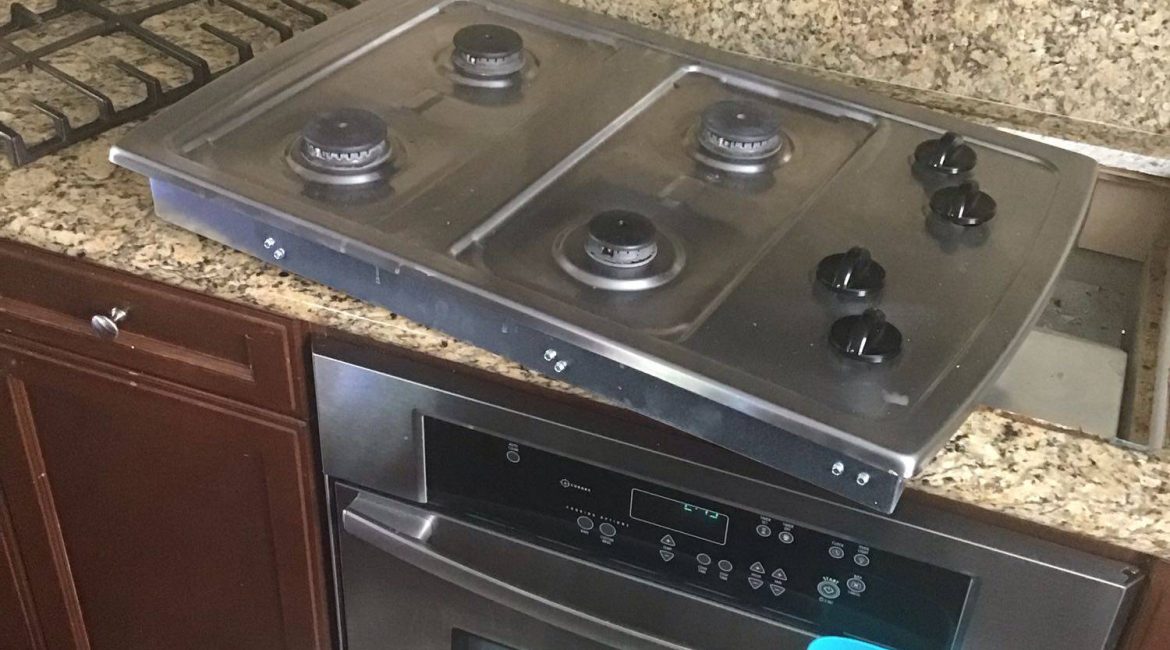

A Whirlpool gas range surface burner that clicks but does not ignite can quickly become a frustrating kitchen problem. You may hear the familiar clicking sound when you turn the burner knob, yet there is no flame. In some cases, the burner lights after several attempts. In others, it remains completely unresponsive.
When a Whirlpool gas range burner will not light, the problem can involve the burner cap, burner ports, spark electrode, wiring, ignition switch, or spark ignition module. Because the appliance uses both gas and electricity, troubleshooting should be approached carefully. If you smell gas, turn off the burner controls, avoid flames or electrical switches, ventilate the area if it is safe to do so, and contact your local gas utility or a qualified appliance professional.
Start With the Burner Cap and Burner Ports
Before assuming an electrical component has failed, check whether the burner cap is positioned correctly. A cap that is shifted, upside down, or not seated properly can prevent the spark from igniting the gas.
Food particles, grease, and cleaning residue can also block the small openings around the burner head. These ports allow gas to flow around the burner and form the flame pattern. If several openings are clogged, the burner may click without producing a usable flame.
Make sure the range is cool before cleaning. Remove the burner cap and clean the burner area according to Whirlpool’s instructions. Avoid enlarging the ports or using sharp objects that could damage the burner assembly.
If the burner is clean and correctly assembled but still will not ignite, the ignition system should be inspected.
A Faulty Spark Electrode Can Prevent Ignition
The spark electrode is the component that creates the electrical spark needed to ignite the gas. It is positioned near the burner so the spark can jump to the gas as it exits the burner ports.
A damaged or contaminated electrode may produce a weak spark or no spark at all. Cracks in the ceramic insulator can also affect its operation. If the electrode has been exposed to spilled liquids or heavy grease, ignition may become unreliable.
One common symptom is a burner that clicks normally but never produces a flame. You may also notice that the burner occasionally lights and then becomes difficult to ignite again.
The electrode itself is only one part of the ignition circuit, however. If there is no spark, a technician needs to determine whether the electrode is receiving the appropriate electrical signal before replacing the component.
The Ignition Module May Be the Problem
Whirlpool gas ranges commonly use an electronic spark ignition system. The ignition module helps generate the high-voltage electrical pulses required to create a spark at the electrode.
When the ignition module develops a fault, one or more burners may stop sparking. Depending on the design and failure pattern, the symptoms can vary. A single burner may be affected, while multiple burners may fail at the same time.
If several surface burners suddenly stop producing sparks, the problem may be further upstream in the ignition system rather than with individual burner electrodes.
A technician can inspect the ignition circuit, wiring connections, and module to determine whether the correct electrical signals are present. Replacing an ignition module without testing the rest of the system can result in unnecessary expense if another component is responsible.
Check the Ignition Switch and Wiring
Turning the burner knob activates the ignition process. The associated switch and wiring communicate with the spark system and can contribute to ignition problems when they fail.
A faulty switch may prevent the ignition circuit from operating correctly. Damaged, loose, or disconnected wiring can produce similar symptoms.
If the burner knob feels unusual, the burner behaves differently from the others, or the clicking pattern has changed, the control and ignition components should be inspected.
Electrical troubleshooting on a gas appliance should be performed by a qualified professional. The ignition system operates at high voltage, and accessing internal components may also expose you to gas connections and other hazards.
Why One Burner May Behave Differently From the Others
Comparing the affected burner with the working burners can provide useful information. If the other burners produce strong sparks and ignite normally, the issue may be localized to the affected burner, its electrode, wiring, or burner assembly.
If none of the burners spark, the problem may involve a shared ignition component, power supply, or control circuit.
A burner that produces a visible spark but still does not ignite requires a different diagnostic approach. In that situation, the technician may need to inspect gas flow, burner ports, cap positioning, and the distance between the electrode and burner.
This distinction matters because replacing the spark electrode will not solve a problem caused by restricted gas flow or an incorrectly positioned burner component.
When Professional Appliance Repair Is Needed
If cleaning and correctly reinstalling the burner components do not restore ignition, professional diagnosis is recommended. A technician can inspect the spark electrode, ignition module, switches, wiring, burner assembly, and related components to identify the actual source of the failure.
Do not repeatedly attempt to ignite a burner if you smell gas or suspect that gas is accumulating. Stop using the appliance and seek appropriate professional assistance.
A Whirlpool gas range that will not light can sometimes have a relatively simple cause, but ignition failures can also point to electrical or mechanical component problems. Proper diagnosis helps prevent unnecessary part replacement and gets the range back to reliable operation.
